PIVOTED OVERLAPPING BUCKET ELEVATORS

MODEL LH-300

MODEL LH-300-SW

MODEL LS-100

MODEL LS-100-SW

MODEL LS-100-SW

STANDARD CAPACITY SERIES

DESIGN FEATURES

ENGINEERING DATA

CAPACITIES

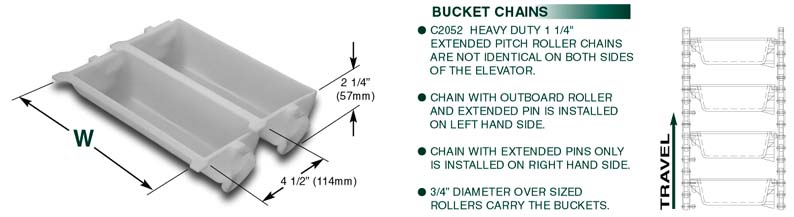

MODEL LS-100-SW					ELEVATOR CAPACITIES
ELEVATOR MODEL	W BUCKET WIDTH		BUCKET VOLUME		STANDARD END DISCHARGE				SIDE DISCHARGE
					CHAIN SPEED 58 FPM (17.6 MPM) BUCKET PITCH 5" (127 MM)				CHAIN SPEED 35 FPM (10.66 MPM) BUCKET PITCH 5" (127 MM)
					LOADING 100% FULL		LOADING 75% FULL		LOADING 75% FULL
	INCHES	MM	IN.^3	LITERS	FT^3/HR	M^3/HR	FT^3/HR	M^3/HR	FT^3/HR	M^3/HR
LS-100-6	6	152	50	.82	240	6.80	180	5.10	110	3.12
LS-100-9	9	229	75	1.23	360	10.20	270	7.65	165	4.69
LS-100-12	12	305	100	1.64	480	13.60	360	10.20	220	6.24
LS-100-15	15	381	125	2.05	600	17.00	450	12.75	273	7.73
LS-100-18	18	451	150	2.46	720	20.40	540	15.30	330	9.35
