PIVOTED
OVERLAPPING BUCKET ELEVATORS
MODEL LS-100-SW: STANDARD CAPACITY SERIES
|
MODEL
LS-100-SW
|
ELEVATOR
CAPACITIES
|
|||||||||
|
ELEVATOR
MODEL
|

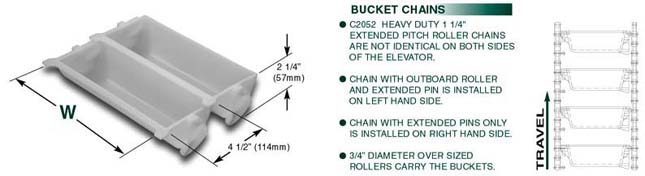

W BUCKET WIDTH |
BUCKET
VOLUME
|
STANDARD
END DISCHARGE
|
SIDE
DISCHARGE
|
||||||
|
CHAIN SPEED 58 FPM (17.6 MPM) BUCKET PITCH 5" (127 MM) |
CHAIN SPEED 35 FPM (10.66 MPM) BUCKET PITCH 5" (127 MM) |
|||||||||
|
LOADING
100% FULL
|
LOADING
75% FULL
|
LOADING
75% FULL
|
||||||||
|
INCHES
|
MM
|
IN.^3
|
LITERS
|
FT^3/HR
|
M^3/HR
|
FT^3/HR
|
M^3/HR
|
FT^3/HR
|
M^3/HR
|
|
| LS-100-6 |
6
|
152
|
50
|
.82
|
240
|
6.80
|
180
|
5.10
|
110
|
3.12
|
| LS-100-9 |
9
|
229
|
75
|
1.23
|
360
|
10.20
|
270
|
7.65
|
165
|
4.69
|
| LS-100-12 |
12
|
305
|
100
|
1.64
|
480
|
13.60
|
360
|
10.20
|
220
|
6.24
|
| LS-100-15 |
15
|
381
|
125
|
2.05
|
600
|
17.00
|
450
|
12.75
|
273
|
7.73
|
| LS-100-18 |
18
|
451
|
150
|
2.46
|
720
|
20.40
|
540
|
15.30
|
330
|
9.35
|
