INNOVATIVE BULK MATERIAL HANDLING TECHNOLOGIES

PIVOTED OVERLAPPING BUCKET ELEVATORS

MODEL LS-100

STANDARD CAPACITY SERIES
MODEL LS-100
ELEVATOR CAPACITIES
ELEVATOR MODEL

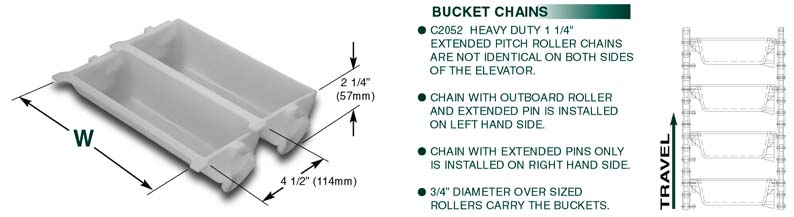

W

BUCKET WIDTH
BUCKET VOLUME
STANDARD END DISCHARGE
SIDE DISCHARGE

CHAIN SPEED 58 FPM (17.6 MPM)

BUCKET PITCH 5" (127 MM)

CHAIN SPEED 35 FPM (10.66 MPM)

BUCKET PITCH 5" (127 MM)
LOADING 100% FULL
LOADING 75% FULL
LOADING 75% FULL
INCHES
MM
IN.^3
LITERS
FT^3/HR
M^3/HR
FT^3/HR
M^3/HR
FT^3/HR
M^3/HR
LS-100-6
6
152
50
.82
240
6.80
180
5.10
110
3.12
LS-100-9
9
229
75
1.23
360
10.20
270
7.65
165
4.69
LS-100-12
12
305
100
1.64
480
13.60
360
10.20
220
6.24
LS-100-15
15
381
125
2.05
600
17.00
450
12.75
273
7.73
LS-100-18
18
451
150
2.46
720
20.40
540
15.30
330
9.35
