PIVOTED
OVERLAPPING BUCKET ELEVATORS
MODEL LH-300: HIGH CAPACITY SERIES
|
MODEL
LH-300
|
ELEVATOR
CAPACITIES
|
|||||||||
|
ELEVATOR
MODEL
|

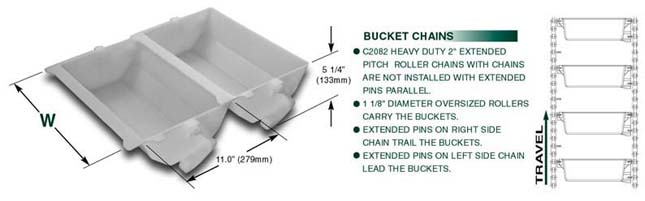

W BUCKET WIDTH |
BUCKET
VOLUME
|
STANDARD
END DISCHARGE
|
SIDE
DISCHARGE
|
||||||
|
CHAIN SPEED 75 FPM (22.86 MPM) BUCKET PITCH 12" (305 MM) |
CHAIN SPEED 60 FPM (18.29 MPM) BUCKET PITCH 12"(305 MM) |
|||||||||
|
LOADING
100% FULL
|
LOADING
75% FULL
|
LOADING
75% FULL
|
||||||||
|
INCHES
|
MM
|
IN.^3
|
LITERS
|
FT^3/HR
|
M^3/HR
|
FT^3/HR
|
M^3/HR
|
FT^3/HR
|
M^3/HR
|
|
| LH-300-9 |
9
|
229
|
335
|
5.5
|
875
|
24.78
|
655
|
18.55
|
525
|
14.87
|
| LH-300-12 |
12
|
305
|
460
|
7.5
|
1200
|
33.98
|
900
|
25.49
|
720
|
20.39
|
| LH-300-15 |
15
|
381
|
585
|
9.6
|
1525
|
43.19
|
1145
|
32.40
|
915
|
25.91
|
| LH-300-18 |
18
|
457
|
710
|
11.6
|
1850
|
52.39
|
1390
|
39.30
|
1110
|
31.44
|
| LH-300-21 |
21
|
533
|
835
|
13.6
|
2175
|
61.60
|
1630
|
46.16
|
1305
|
36.95
|
| LH-300-24 |
24
|
610
|
960
|
15.7
|
2500
|
70.80
|
1875
|
53.10
|
1500
|
42.48
|
| LH-300-30 |
30
|
762
|
1170
|
19.2
|
3050
|
86.38
|
2290
|
64.85
|
1825
|
51.68
|
| LH-300-36 |
36
|
914
|
1420
|
23.3
|
3600
|
101.95
|
2700
|
76.46
|
2215
|
62.73
|
| LH-300-42 |
42
|
1067
|
1670
|
27.4
|
4350
|
123.19
|
3262
|
92.39
|
2605
|
73.77
|
| LH-300-48 |
48
|
1219
|
1920
|
31.5
|
5000
|
141.60
|
3750
|
106.00
|
3000
|
85.00
|
